MT4 超级经典的绝密背离信号指标

时间：2019/06/25 19:31   分类：技术指标    人气：2059

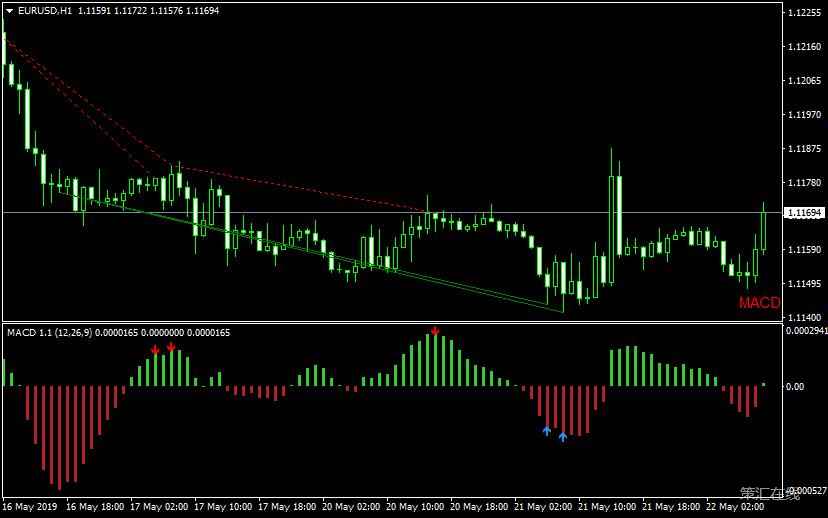

根据显示的 蓝色 和 红色 箭头提供买入和卖出信号. 它还有内建的提醒功能. 和最初的指标一样, 牛势背离以绿色线画出而熊势背离用红色线画出. 如果背离是经典类型, 线就是实线儿如果类型是反转的线就是虚线.

值得提醒：在强势涨跌行情下，背离可以持续发生多次背离，直到背离的让猜顶摸底的人绝望。所有以注重顺势而为，在反弹的重点价位参考背离，或者宽幅震荡的时候参考。

点击下载程序与源码 文件大小：3.13 KB

MQL4/
MQL4/Indicators/
MQL4/Indicators/绝密背离信号.mq4
必须读我.txt
策汇在线.url


MQL4/Indicators/绝密背离信号.mq4代码片段：

#property copyright ""
#property link      ""

#property indicator_separate_window
#property indicator_buffers 5
#property indicator_color1 LimeGreen
#property indicator_color2 FireBrick
#property indicator_color3 DodgerBlue
#property indicator_color4 Red
#property indicator_color5 Black

extern string separator1 = "*** OSMA 移动平均震荡设置 ***";
extern int fastEMA = 12;
extern int slowEMA = 26;
extern int signal = 9;
extern string separator2 = "*** 指标参数设置 ***";
extern double positiveSensitivity = 0.0001;
extern double negativeSensitivity = -0.0001;
extern double historyBarsCount = 0.0;
extern bool drawDivergenceLines = TRUE;
extern bool displayAlert = TRUE;
double g_ibuf_136[];
double g_ibuf_140[];
double g_ibuf_144[];
double g_ibuf_148[];
double g_ibuf_152[];
datetime g_time_156;

 // 标签显示MACD
void ads() {
   SetLab("ads01", 1, 10, 3, "MACD", 11, "Arial", Red);
}

// 设置显示标签
void SetLab(string a_name_0, int a_x_8, int a_y_12, int a_corner_16, string a_text_20, int a_fontsize_28, string a_fontname_32, color a_color_40 = -1) {
   ObjectCreate(a_name_0, OBJ_LABEL, 0, 0, 0);
   ObjectSet(a_name_0, OBJPROP_XDISTANCE, a_x_8);
   ObjectSet(a_name_0, OBJPROP_YDISTANCE, a_y_12);
   ObjectSet(a_name_0, OBJPROP_CORNER, a_corner_16);
   ObjectSetText(a_name_0, a_text_20, a_fontsize_28, a_fontname_32, a_color_40);
}

// 初始化
int init() {
   SetIndexStyle(0, DRAW_HISTOGRAM, STYLE_SOLID, 2);
   SetIndexStyle(1, DRAW_HISTOGRAM, STYLE_SOLID, 2);
   SetIndexStyle(2, DRAW_ARROW);
   SetIndexStyle(3, DRAW_ARROW);
   SetIndexStyle(4, DRAW_NONE);
   SetIndexBuffer(0, g_ibuf_136);
   SetIndexBuffer(1, g_ibuf_140);
   SetIndexBuffer(2, g_ibuf_144);
   SetIndexBuffer(3, g_ibuf_148);
   SetIndexBuffer(4, g_ibuf_152);
   SetIndexArrow(2, 233);
   SetIndexArrow(3, 234);
   IndicatorDigits(Digits + 2);
   IndicatorShortName("MACD 1.1 (" + fastEMA + "," + slowEMA + "," + signal + ")");
   return (0);
}

int deinit() {
   string l_name_4;
   ads();
   for (int li_0 = ObjectsTotal() - 1; li_0 >= 0; li_0--) {
      l_name_4 = ObjectName(li_0);
      if (StringSubstr(l_name_4, 0, 14) == "DivergenceLine") ObjectDelete(l_name_4);
   }
   return (0);
}

// 开始指标
int start()
{
   int l_ind_counted_0 = IndicatorCounted();
   if (l_ind_counted_0 < 0) l_ind_counted_0 = 0;
   CalculateIndicator(l_ind_counted_0);
   return (0);
}

// 计算指标
void CalculateIndicator(int ai_0) {
   for (int li_4 = Bars - ai_0; li_4 >= 0; li_4--) {
      CalculateOsMA(li_4);
      CatchBullishDivergence(li_4 + 2);
      CatchBearishDivergence(li_4 + 2);
   }
}

// 计算MA
void CalculateOsMA(int ai_0) {
   g_ibuf_152[ai_0] = iOsMA(NULL, 0, fastEMA, slowEMA, signal, PRICE_CLOSE, ai_0);
   if (g_ibuf_152[ai_0] > 0.0) {
      g_ibuf_136[ai_0] = g_ibuf_152[ai_0];
      g_ibuf_140[ai_0] = 0;
      return;
   }
   if (g_ibuf_152[ai_0] < 0.0) {
      g_ibuf_140[ai_0] = g_ibuf_152[ai_0];
      g_ibuf_136[ai_0] = 0;
      return;
   }
   g_ibuf_136[ai_0] = 0;
   g_ibuf_140[ai_0] = 0;
}

// 捕捉看涨（牛市）背离
void CatchBullishDivergence(int ai_0) {
   int li_4;
   int li_8;
   if (IsIndicatorTrough(ai_0) != 0) {
      li_4 = ai_0;
      li_8 = GetIndicatorLastTrough(ai_0);
      if (g_ibuf_152[li_4] > g_ibuf_152[li_8] && Low[li_4] < Low[li_8]) {
         g_ibuf_144[li_4] = g_ibuf_152[li_4];
         if (drawDivergenceLines == TRUE) {
            DrawPriceTrendLine(Time[li_4], Time[li_8], Low[li_4], Low[li_8], Green, STYLE_SOLID);
            DrawIndicatorTrendLine(Time[li_4], Time[li_8], g_ibuf_152[li_4], g_ibuf_152[li_8], Green, STYLE_SOLID);
         }
         if (displayAlert == TRUE) DisplayAlert("经典多头背离: 做多", li_4);
      }
      if (g_ibuf_152[li_4] < g_ibuf_152[li_8] && Low[li_4] > Low[li_8]) {
         g_ibuf_144[li_4] = g_ibuf_152[li_4];
         if (drawDivergenceLines == TRUE) {
            DrawPriceTrendLine(Time[li_4], Time[li_8], Low[li_4], Low[li_8], Green, STYLE_DOT);
            DrawIndicatorTrendLine(Time[li_4], Time[li_8], g_ibuf_152[li_4], g_ibuf_152[li_8], Green, STYLE_DOT);
         }
         if (displayAlert == TRUE) DisplayAlert("反向多头背离 做空: ", li_4);
      }
   }
}

// 捕获看跌（熊市）背离
void CatchBearishDivergence(int ai_0) {
   int li_4;
   int li_8;
   if (IsIndicatorPeak(ai_0) != 0) {
      li_4 = ai_0;
      li_8 = GetIndicatorLastPeak(ai_0);
      if (g_ibuf_152[li_4] < g_ibuf_152[li_8] && High[li_4] > High[li_8]) {
         g_ibuf_148[li_4] = g_ibuf_152[li_4];
         if (drawDivergenceLines == TRUE) {
            DrawPriceTrendLine(Time[li_4], Time[li_8], High[li_4], High[li_8], Red, STYLE_SOLID);
            DrawIndicatorTrendLine(Time[li_4], Time[li_8], g_ibuf_152[li_4], g_ibuf_152[li_8], Red, STYLE_SOLID);
         }
         if (displayAlert == TRUE) DisplayAlert("经典空头背离: 做空", li_4);
      }
      if (g_ibuf_152[li_4] > g_ibuf_152[li_8] && High[li_4] < High[li_8]) {
         g_ibuf_148[li_4] = g_ibuf_152[li_4];
         if (drawDivergenceLines == TRUE) {
            DrawPriceTrendLine(Time[li_4], Time[li_8], High[li_4], High[li_8], Red, STYLE_DOT);
            DrawIndicatorTrendLine(Time[li_4], Time[li_8], g_ibuf_152[li_4], g_ibuf_152[li_8], Red, STYLE_DOT);
         }
         if (displayAlert == TRUE) DisplayAlert("反向空头背离: 做多", li_4);
      }
   }
}

int IsIndicatorPeak(int ai_0) {
   if (g_ibuf_152[ai_0] > positiveSensitivity + 0.0 && g_ibuf_152[ai_0] > g_ibuf_152[ai_0 + 1] && g_ibuf_152[ai_0] > g_ibuf_152[ai_0 - 1]) {
      for (int li_4 = ai_0 + 1; li_4 < Bars; li_4++) {
         if (g_ibuf_152[li_4] < 0.0) return (1);
         if (g_ibuf_152[li_4] > g_ibuf_152[ai_0]) break;
      }
   }
   return (0);
}

int IsIndicatorTrough(int ai_0) {
   if (g_ibuf_152[ai_0] < negativeSensitivity + 0.0 && g_ibuf_152[ai_0] < g_ibuf_152[ai_0 + 1] && g_ibuf_152[ai_0] < g_ibuf_152[ai_0 - 1]) {
      for (int li_4 = ai_0 + 1; li_4 < Bars; li_4++) {
         if (g_ibuf_152[li_4] > 0.0) return (1);
         if (g_ibuf_152[li_4] < g_ibuf_152[ai_0]) break;
      }
   }
   return (0);
}

int GetIndicatorLastPeak(int ai_0) {
   bool li_4 = FALSE;
   for (int li_ret_8 = ai_0; li_ret_8 < Bars; li_ret_8++) {
      if (g_ibuf_152[li_ret_8] > 0.0 && li_4 == FALSE) continue;
      if (g_ibuf_152[li_ret_8] < 0.0) li_4 = TRUE;
      else {
         if (g_ibuf_152[li_ret_8] >= positiveSensitivity)
            if (g_ibuf_152[li_ret_8] > g_ibuf_152[li_ret_8 + 1] && g_ibuf_152[li_ret_8] > g_ibuf_152[li_ret_8 - 1]) return (li_ret_8);
      }
   }
   return (-1);
}

// 获取指标通道
int GetIndicatorLastTrough(int ai_0) {
   bool li_4 = FALSE;
   for (int li_ret_8 = ai_0; li_ret_8 < Bars; li_ret_8++) {
      if (g_ibuf_152[li_ret_8] < 0.0 && li_4 == FALSE) continue;
      if (g_ibuf_152[li_ret_8] > 0.0) li_4 = TRUE;
      else {
         if (g_ibuf_152[li_ret_8] <= negativeSensitivity)
            if (g_ibuf_152[li_ret_8] < g_ibuf_152[li_ret_8 + 1] && g_ibuf_152[li_ret_8] < g_ibuf_152[li_ret_8 - 1]) return (li_ret_8);
      }
   }
   return (-1);
}

// 显示警报
void DisplayAlert(string as_0, int ai_8) {
   if (ai_8 <= 2 && Time[ai_8] != g_time_156) {
      g_time_156 = Time[ai_8];
      Alert(as_0, Symbol(), " , ", Period(), " minutes chart");
   }
}

// 绘制价格趋势线
void DrawPriceTrendLine(int a_datetime_0, int a_datetime_4, double a_price_8, double a_price_16, color a_color_24, double a_style_28) {
   string l_name_36 = "DivergenceLine2.0# " + DoubleToStr(a_datetime_0, 0);
   ObjectDelete(l_name_36);
   ObjectCreate(l_name_36, OBJ_TREND, 0, a_datetime_0, a_price_8, a_datetime_4, a_price_16, 0, 0);
   ObjectSet(l_name_36, OBJPROP_RAY, FALSE);
   ObjectSet(l_name_36, OBJPROP_COLOR, a_color_24);
   ObjectSet(l_name_36, OBJPROP_STYLE, a_style_28);
}

// 绘制指标趋势线
void DrawIndicatorTrendLine(int a_datetime_0, int a_datetime_4, double a_price_8, double a_price_16, color a_color_24, double a_style_28) {
   string l_name_40;
   int l_window_36 = WindowFind("FX5_Divergence_v2.0(" + fastEMA + "," + slowEMA + "," + signal + ")");
   if (l_window_36 >= 0) {
      l_name_40 = "DivergenceLine2.0$# " + DoubleToStr(a_datetime_0, 0);
      ObjectDelete(l_name_40);
      ObjectCreate(l_name_40, OBJ_TREND, l_window_36, a_datetime_0, a_price_8, a_datetime_4, a_price_16, 0, 0);
      ObjectSet(l_name_40, OBJPROP_RAY, FALSE);
      ObjectSet(l_name_40, OBJPROP_COLOR, a_color_24);
      ObjectSet(l_name_40, OBJPROP_STYLE, a_style_28);
   }
}
